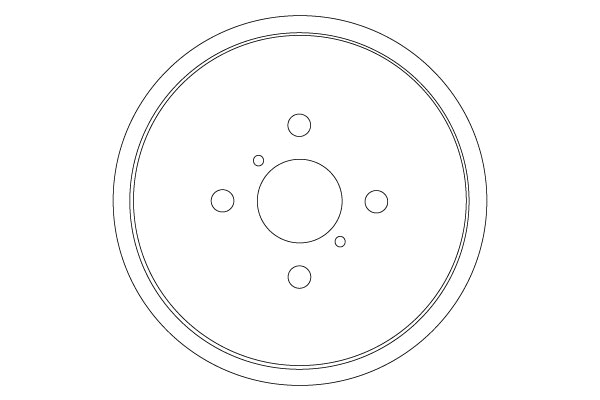

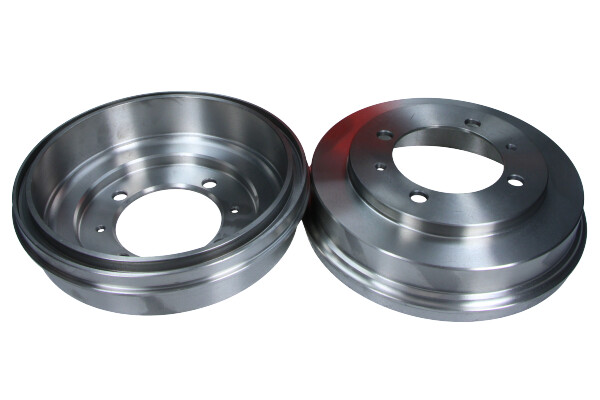

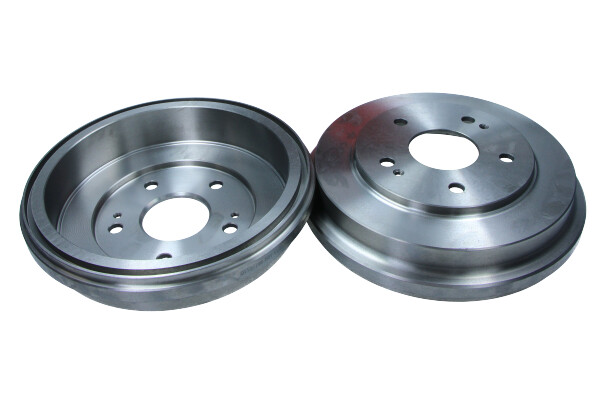

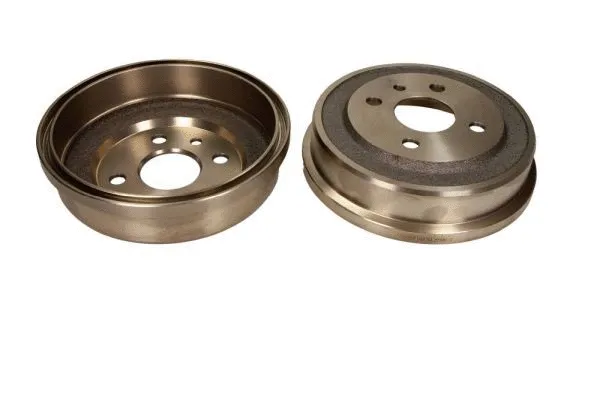

Brake Drum

Number of Holes:

4

Brake diameter, inside [mm]:

185,0

Supplementary Article/Info 2:

with wheel hub; with wheel studs; without bolts/screws; without wheel bearing; without wheel studs

Hub Diameter 1 [mm]:

53

Fitting Position:

Rear Axle

Number of Holes:

4

Centering Diameter [mm]:

59

Bolt Hole Circle Ø [mm]:

98

Inner Brake Drum Height [mm]:

40

Fitting Position:

Rear Axle

Inner Brake Drum Height [mm]:

38

Total Br. Drum Height [mm]:

57

Max.skimmed drum measure [mm]:

201

Hole Arrangement/Number:

06/14

Fitting Position:

Rear Axle

Number of Holes:

4

Brake diameter, inside [mm]:

185

Inner Brake Drum Height [mm]:

37

Brake diameter, outer [mm]:

219

Number of Holes:

4

Brake diameter, inside [mm]:

180,0

Length [mm]:

631,0

Bolt Hole Circle Ø [mm]:

205,0

Thread Size 2:

M10

Number of Holes:

4

Centering Diameter [mm]:

59

Bolt Hole Circle Ø [mm]:

98

Inner Brake Drum Height [mm]:

40

Brake diameter, inside [mm]:

180

Bolt Hole Circle Ø [mm]:

100

Brake diameter, outer [mm]:

212

Inner Brake Drum Height [mm]:

41

Total Br. Drum Height [mm]:

53

Fitting Position:

Rear Axle

Brake diameter, inside [mm]:

220

Inner Brake Drum Height [mm]:

45

Hub Bore Ø [mm]:

64

Fitting Position:

Rear Axle

Brake diameter, inside [mm]:

203

Inner Brake Drum Height [mm]:

42

Hub Bore Ø [mm]:

90

Brake diameter, inside [mm]:

180

Centering Diameter [mm]:

59

Bolt Hole Circle Ø [mm]:

98

Brake diameter, outer [mm]:

214

Inner Brake Drum Height [mm]:

40
