Description
-

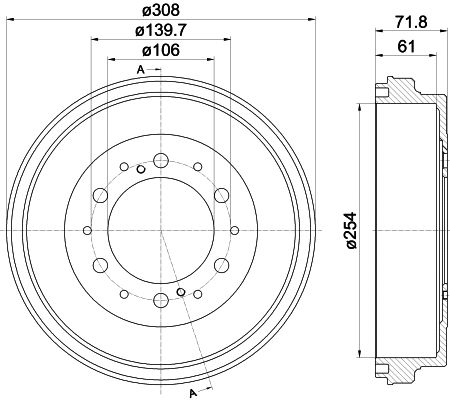

Brake diameter, inside [mm]:
254
-
Weight [kg]:
8,6
-
Bolt Hole Circle Ø [mm]:
139,7
-
Centering Diameter [mm]:
106
-
Brake diameter, outer [mm]:
308
-
Inner Brake Drum Height [mm]:
61
-
Total Br. Drum Height [mm]:
83,6
-
Hole Arrangement/Number:
06/14
-
Fitted Diameter [mm]:
101
-
Max.skimmed drum measure [mm]:
201,4
-
Technical Information Number:
61218
Analogs parts
Product
Name
Availability
Price
TOYOTA
-
HIACE IV Van (__H1_, __H2_)
- TOYOTA HIACE IV Фургон (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22), Van, 2KD-FTV, Diesel, 2494 cc, 70/95 Hp
- TOYOTA HIACE IV Фургон (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22), Van, 2KD-FTV, Diesel, 2494 cc, 86/117 Hp
- TOYOTA HIACE IV Фургон (__H1_, __H2_) 2.5 D-4D 4WD (KLH28, KLH18), Van, 2KD-FTV, Diesel, 2494 cc, 86/117 Hp
-
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D, Van, 5L, Diesel, 2986 cc, 65/88 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220), Van, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH201, KDH203, KDH221), Van, 1KD-FTV, Diesel, 2982 cc, 106/144 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.0 (TRH200), Van, 1TR-FE, Petrol, 1998 cc, 98/133 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D, Van, 2KD-FTV, Diesel, 2494 cc, 70/95 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.7 VVTi (TRH201, TRH221), Van, 2TR-FE, Petrol, 2694 cc, 111/151 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH201, KDH221), Van, 1KD-FTV, Diesel, 2982 cc, 80/109 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH200, KDH220), Van, 2KD-FTV, Diesel, 2494 cc, 80/109 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH200, KDH202, KDH212, KDH222), Van, 2KD-FTV, Diesel, 2494 cc, 86/117 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH200, KDH223), Van, 1KD-FTV, Diesel, 2982 cc, 75/102 Hp
-
REGIUS ACE Bus (TRH2_, KDH2_)
- TOYOTA REGIUS ACE Автобус (TRH2_, KDH2_) 3.0 D-4D (KDH201_), Bus, 1KD-FTV, Diesel, 2982 cc, 106/144 Hp
- TOYOTA REGIUS ACE Автобус (TRH2_, KDH2_) 2.5 D-4D (KDH200), Bus, 2KD-FTV, Diesel, 2494 cc, 80/109 Hp
- TOYOTA REGIUS ACE Автобус (TRH2_, KDH2_) 2.0 (TRH200), Bus, 1TR-FE, Petrol, 1998 cc, 98/133 Hp
- TOYOTA REGIUS ACE Автобус (TRH2_, KDH2_) 2.7 (TRH211, TRH214, TRH221, TRH223), Bus, 2TR-FE, Petrol, 2693 cc, 111/151 Hp
- TOYOTA REGIUS ACE Автобус (TRH2_, KDH2_) 3.0 D-4D 4WD (KDH206), Bus, 1KD-FTV, Diesel, 2982 cc, 106/144 Hp
-
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH202), Bus, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH223), Bus, 1KD-FTV, Diesel, 2982 cc, 106/144 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.0 (TRH200), Bus, 1TR-FE, Petrol, 1998 cc, 98/133 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D 4WD (KDH205, KDH227, KDH225), Bus, 2KD-FTV, Diesel, 2494 cc, 94/128 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.7 (TRH223), Bus, 2TR-FE, Petrol, 2694 cc, 111/151 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH203_, KDH221, KDH223), Bus, 1KD-FTV, Diesel, 2982 cc, 80/109 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH222, KDH202, KDH212), Bus, 2KD-FTV, Diesel, 2494 cc, 80/109 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (LH202_, LH212_, LH222_), Bus, 5L, Diesel, 2986 cc, 65/88 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.7 4WD (TRH219W), Bus, 2TR-FE, Petrol, 2694 cc, 111/151 Hp
-
HIACE IV Bus (__H1_, __H2_)
- TOYOTA HIACE IV Автобус (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22), Bus, 2KD-FTV, Diesel, 2494 cc, 70/95 Hp
- TOYOTA HIACE IV Автобус (__H1_, __H2_) 2.5 D-4D (KLH12, KLH22), Bus, 2KD-FTV, Diesel, 2494 cc, 86/117 Hp
- TOYOTA HIACE IV Автобус (__H1_, __H2_) 2.5 D-4D 4WD (KLH18), Bus, 2KD-FTV, Diesel, 2494 cc, 86/117 Hp
-
REGIUS ACE Van (TRH2_, KDH2_)
- TOYOTA REGIUS ACE Фургон (TRH2_, KDH2_) 2.5 D-4D (KDH200), Van, 2KD-FTV, Diesel, 2494 cc, 80/109 Hp
- TOYOTA REGIUS ACE Фургон (TRH2_, KDH2_) 2.0 (TRH200), Van, 1TR-FE, Petrol, 1998 cc, 98/133 Hp
- TOYOTA REGIUS ACE Фургон (TRH2_, KDH2_) 2.7 (TRH211, TRH214, TRH221, TRH223), Van, 2TR-FE, Petrol, 2693 cc, 111/151 Hp
- TOYOTA REGIUS ACE Фургон (TRH2_, KDH2_) 3.0 D-4D (KDH201, KDH211, KDH221), Van, 1KD-FTV, Diesel, 2982 cc, 106/144 Hp
- TOYOTA REGIUS ACE Фургон (TRH2_, KDH2_) 3.0 D-4D 4WD (KDH206), Van, 1KD-FTV, Diesel, 2982 cc, 106/144 Hp
- TOYOTA REGIUS ACE Фургон (TRH2_, KDH2_) 2.7 4WD (TRH216, TRH219, TRH226, TRH228, TRH229), Van, 2TR-FE, Petrol, 2693 cc, 111/151 Hp
Car Name
OE number
TOYOTA
4243126190
