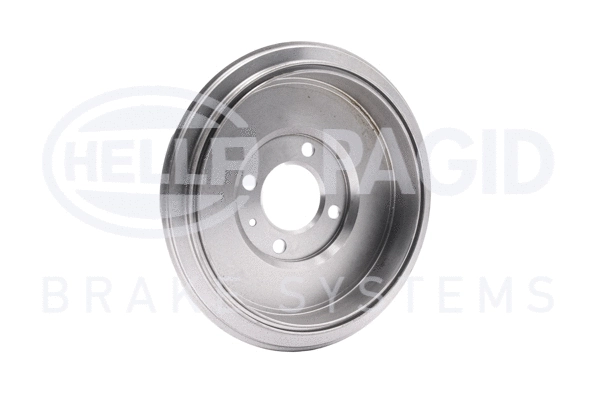

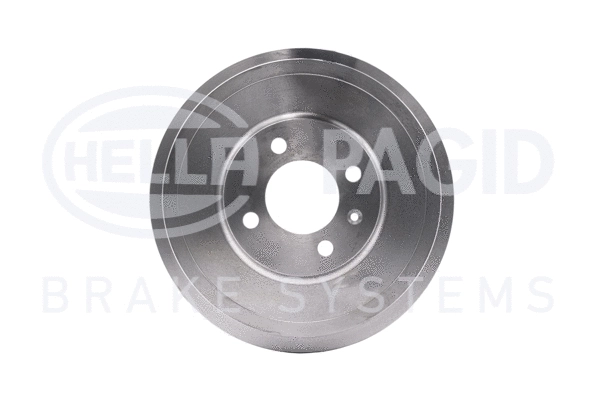

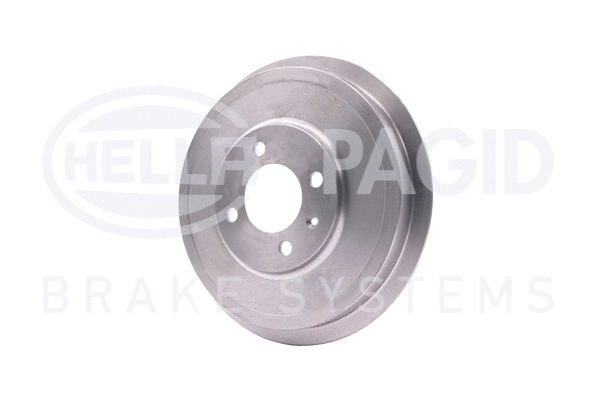

Brake Drum (8DT 355 300-811)
Description
-
Brake diameter, inside [mm]:
230
-
Bolt Hole Circle Ø [mm]:
100
-
Brake diameter, outer [mm]:
290
-
Centering Diameter [mm]:
65
-
Weight [kg]:
6,1
-
Minimum thickness [mm]:
10,0
-
Wheel Bolt Bore Ø [mm]:
13,7
-
Max.skimmed drum measure [mm]:
231,5
-
Bolt Hole Circle Ø [mm]:
100,0
-
Inner Brake Drum Height [mm]:
39,3
-
Hole Arrangement/Number:
06/14
-
Technical Information Number:
61282
Analogs parts
Product
Name
t.availability
Price
SEAT
-
INCA (6K9)
- SEAT INCA (6K9) 1.9 SDI, Estate Van, AEY,AYQ, Diesel, 1896 cc, 47/64 Hp
- SEAT INCA (6K9) 1.7 D, Estate Van, AHB, Diesel, 1715 cc, 42/57 Hp
- SEAT INCA (6K9) 1.9 TDI, Estate Van, ALH, Diesel, 1896 cc, 66/90 Hp
- SEAT INCA (6K9) 1.4 16V, Estate Van, AUA, Petrol, 1390 cc, 55/75 Hp
- SEAT INCA (6K9) 1.6 i, Estate Van, AEE,ALM, Petrol, 1598 cc, 55/75 Hp
- SEAT INCA (6K9) 1.6, Estate Van, UVC, Petrol, 1595 cc, 70/95 Hp
- SEAT INCA (6K9) 1.6, Estate Van, AEE, Petrol, 1598 cc, 66/90 Hp
- SEAT INCA (6K9) 1.9 D, Estate Van, 1Y, Diesel, 1896 cc, 47/64 Hp
- SEAT INCA (6K9) 1.4 i, Estate Van, AEX,AKV,APQ,AUD, Petrol, 1389 cc, 44/60 Hp
VW
-
CADDY II Box Body/MPV (9K9A)
- VW CADDY II Автофургон / микроавтобус (9K9A) 1.9 TDI, Box Body/MPV, 1Z,AHU,ALH,ALE, Diesel, 1896 cc, 66/90 Hp
- VW CADDY II Автофургон / микроавтобус (9K9A) 1.7 SDI, Box Body/MPV, AHB, Diesel, 1715 cc, 42/57 Hp
- VW CADDY II Автофургон / микроавтобус (9K9A) 1.9 D, Box Body/MPV, 1Y, Diesel, 1896 cc, 47/64 Hp
- VW CADDY II Автофургон / микроавтобус (9K9A) 1.4, Box Body/MPV, AUA, Petrol, 1390 cc, 55/75 Hp
- VW CADDY II Автофургон / микроавтобус (9K9A) 1.8, Box Body/MPV, , Petrol, 1781 cc, 63/86 Hp
- VW CADDY II Автофургон / микроавтобус (9K9A) 60 1.4, Box Body/MPV, AEX,AUD,APQ, Petrol, 1390 cc, 44/60 Hp
- VW CADDY II Автофургон / микроавтобус (9K9A) 1.9 SDI, Box Body/MPV, AEY,AYQ, Diesel, 1896 cc, 47/64 Hp
- VW CADDY II Автофургон / микроавтобус (9K9A) 75 1.6, Box Body/MPV, AEE, Petrol, 1598 cc, 55/75 Hp
-
CADDY II MPV (9K9B)
- VW CADDY II вэн (9K9B) 1.4, MPV, AEX,AKV,AUD,APQ, Petrol, 1390 cc, 44/60 Hp
- VW CADDY II вэн (9K9B) 1.4 16V, MPV, AUA, Petrol, 1390 cc, 55/75 Hp
- VW CADDY II вэн (9K9B) 1.6, MPV, AEE, Petrol, 1598 cc, 55/75 Hp
- VW CADDY II вэн (9K9B) 1.7 SDI, MPV, AHB, Diesel, 1715 cc, 42/57 Hp
- VW CADDY II вэн (9K9B) 1.9 D, MPV, 1Y, Diesel, 1896 cc, 47/64 Hp
- VW CADDY II вэн (9K9B) 1.9 TDI, MPV, 1Z,AHU,ALH,ALE, Diesel, 1896 cc, 66/90 Hp
- VW CADDY II вэн (9K9B) 1.9 SDI, MPV, AEY,AYQ, Diesel, 1896 cc, 47/64 Hp
-
CADDY MPV (6K9, 9E7, 9E9)
- VW CADDY вэн (6K9, 9E7, 9E9) 1.9 D, MPV, 1Y, Diesel, 1896 cc, 47/64 Hp
-
CADDY Box Body/MPV (6K9, 9E7, 9E9)
- VW CADDY Автофургон / микроавтобус (6K9, 9E7, 9E9) 1.6, Box Body/MPV, UVC, Petrol, 1595 cc, 69/94 Hp
- VW CADDY Автофургон / микроавтобус (6K9, 9E7, 9E9) 1.9 D, Box Body/MPV, 1Y, Diesel, 1896 cc, 47/64 Hp
Car Name
OE number
AUDI
6K9609617
SEAT
6K9609617
SKODA
6K9609617
VW
6K9609617
