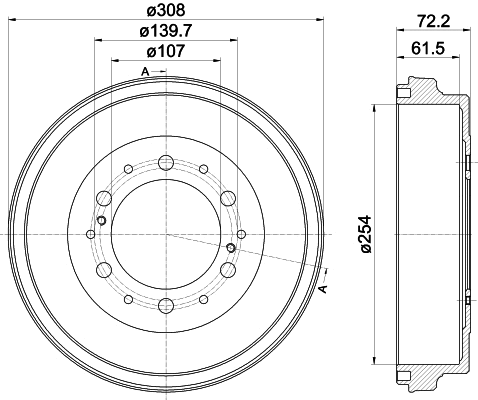

Description
-
Brake diameter, inside [mm]:
254
-
Number of Holes:
6
-
Bolt Hole Circle Ø [mm]:
139,7
-
Brake diameter, outer [mm]:
308
-
Inner Brake Drum Height [mm]:
62
-
Total Br. Drum Height [mm]:
72
-
Centering Diameter [mm]:
107
-
Inner Diameter [mm]:
33,41
Analogs parts
Product
Name
Availability
Price
TOYOTA
-
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.7 (TRH2__, TRH223), Van, 2TR-FE, Petrol, 2694 cc, 118/160 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH221, KDH201), Van, 1KD-FTV, Diesel, 2982 cc, 100/136 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220), Van, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH201, KDH203, KDH221), Van, 1KD-FTV, Diesel, 2982 cc, 106/144 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D, Van, 2KD-FTV, Diesel, 2494 cc, 70/95 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.7 VVTi (TRH201, TRH221), Van, 2TR-FE, Petrol, 2694 cc, 111/151 Hp
- TOYOTA HIACE V Фургон (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH200, KDH202, KDH212, KDH222), Van, 2KD-FTV, Diesel, 2494 cc, 86/117 Hp
-
HIACE V Bus
- TOYOTA HIACE V Автобус 2.5 D-4D (KDH200), Bus, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA HIACE V Автобус 2.7 VVTi (TRH221), Bus, 2TR-FE, Petrol, 2694 cc, 111/151 Hp
-
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH202), Bus, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA HIACE / COMMUTER V Автобус (TRH2__, KDH2__, LH2__, GDH2__) 2.7 (TRH223), Bus, 2TR-FE, Petrol, 2694 cc, 111/151 Hp
-
HIACE IV Bus (__H1_, __H2_)
- TOYOTA HIACE IV Автобус (__H1_, __H2_) 2.7 (TRH203, TRH213, TRH214, TRH224), Bus, 2TR-FE, Petrol, 2694 cc, 111/151 Hp
Car Name
OE number
TOYOTA
4243126190
TOYOTA
4243126200
