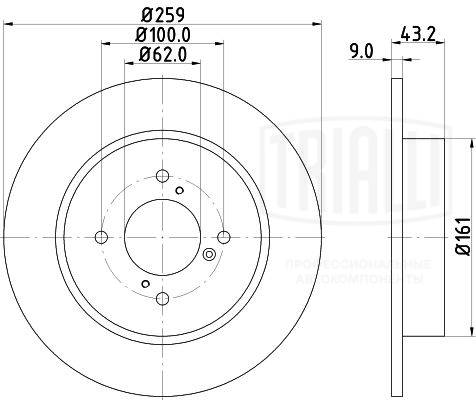

Description
-
Bore Ø [mm]:
14,2
-
Fitting Position:
Rear Axle
-
Centering Diameter [mm]:
62
-
Brake Disc Type:
solid
-
Number of mounting bores:
4
-
Height [mm]:
43
-
Bolt Hole Circle Ø [mm]:
100
-
Minimum thickness [mm]:
8
-
Brake Disc Thickness [mm]:
9
-
Outer Diameter [mm]:
259
-
Inner Length [mm]:
249; 288
Analogs parts
Product
Name
t.availability
Price
SUZUKI
-
SWIFT IV (FZ, NZ)
- SUZUKI SWIFT IV (FZ, NZ) 1.2 (AZH 412, ZC72S), Hatchback, K12B, Petrol, 1242 cc, 69/94 Hp
- SUZUKI SWIFT IV (FZ, NZ) 1.2 4x4 (AZH 412, ZD72S), Hatchback, K12B, Petrol, 1242 cc, 69/94 Hp
- SUZUKI SWIFT IV (FZ, NZ) 1.3 DDiS (AZG 413D, ZC02S, ZC92S), Hatchback, D13A,D13AA, Diesel, 1248 cc, 55/75 Hp
- SUZUKI SWIFT IV (FZ, NZ) 1.2 (AZG 412, ZC72S), Hatchback, K12B, Petrol, 1242 cc, 66/90 Hp
- SUZUKI SWIFT IV (FZ, NZ) 1.2 4x4 (AZG 412, ZD72S), Hatchback, K12B, Petrol, 1242 cc, 66/90 Hp
- SUZUKI SWIFT IV (FZ, NZ) 1.6 (AZG416, AZH416, RS416, ZC32S, ZA32S), Hatchback, M16A, Petrol, 1586 cc, 100/136 Hp
Car Name
OE number
SUZUKI
5561158M00
SUZUKI
5561161M10
SUZUKI
5561161M10000
SUZUKI
5561168L00
SUZUKI
5561168L00000
