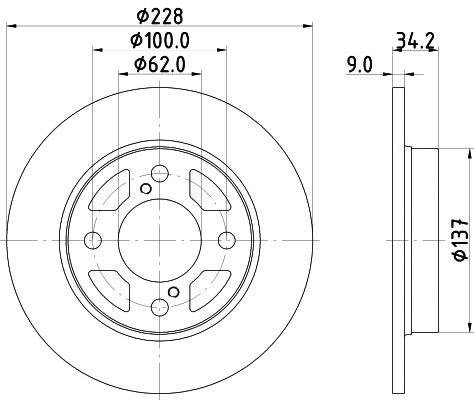

Description
-
Centering Diameter [mm]:
62
-
Brake Disc Type:
solid
-
Bolt Hole Circle Ø [mm]:
100
-
Minimum thickness [mm]:
8
-
Surface:
Coated
-
Brake Disc Thickness [mm]:
9
-
Outer Diameter [mm]:
228
-
Height [mm]:
34,2
-
Weight [kg]:
4,25
-
Wheel Bolt Bore Ø [mm]:
12,6
-
Inner Diameter [mm]:
127
-
Hole Arrangement/Number:
04/06
-
Hole Arrangement/Number:
06/14
-
Technical Information Number:
56033PRO
Analogs parts
Product
Name
t.availability
Price
SUZUKI
-
BALENO (FW, EW)
- SUZUKI BALENO (FW, EW) 1.0 (A1K310), Hatchback, K10C-T, Petrol, 998 cc, 82/112 Hp
- SUZUKI BALENO (FW, EW) 1.2 (A1K412), Hatchback, K12C, Petrol, 1242 cc, 66/90 Hp
- SUZUKI BALENO (FW, EW) 1.2 Hybrid (A1K412), Hatchback, K12C, Petrol/Electric, 1242 cc, 66/90 Hp
- SUZUKI BALENO (FW, EW) 1.2, Hatchback, K12C, Petrol, 1242 cc, 67/91 Hp
- SUZUKI BALENO (FW, EW) 1.4, Hatchback, K14B, Petrol, 1372 cc, 68/92 Hp
-
SWIFT V (AZ)
- SUZUKI SWIFT V (AZ) 1.0 (A2L310), Hatchback, K10C-T, Petrol, 998 cc, 82/112 Hp
- SUZUKI SWIFT V (AZ) 1.0 SHVS (A2L310), Hatchback, K10C-T, Petrol/Electric, 998 cc, 82/112 Hp
- SUZUKI SWIFT V (AZ) 1.2 SHVS AllGrip (A2L412), Hatchback, K12CS, Petrol/Electric, 1242 cc, 66/90 Hp
- SUZUKI SWIFT V (AZ) 1.2 AllGrip (A2L412), Hatchback, K12C, Petrol, 1242 cc, 66/90 Hp
- SUZUKI SWIFT V (AZ) 1.2 SHVS (ZC53S, ZC43S), Hatchback, K12C, Petrol/Electric, 1242 cc, 67/91 Hp
- SUZUKI SWIFT V (AZ) 1.2 SHVS AllGrip (ZD53S), Hatchback, K12C, Petrol/Electric, 1242 cc, 67/91 Hp
- SUZUKI SWIFT V (AZ) 1.2 (ZC83S), Hatchback, K12C, Petrol, 1242 cc, 67/91 Hp
- SUZUKI SWIFT V (AZ) 1.2 AllGrip (ZD83S), Hatchback, K12C, Petrol, 1242 cc, 67/91 Hp
- SUZUKI SWIFT V (AZ) 1.0 (ZC13S), Hatchback, K10C-T, Petrol, 998 cc, 75/102 Hp
- SUZUKI SWIFT V (AZ) 1.2 (A2L412), Hatchback, K12M, Petrol, 1197 cc, 60/82 Hp
- SUZUKI SWIFT V (AZ) 1.2 (A2N412), Hatchback, K12M, Petrol, 1197 cc, 87/118 Hp
- SUZUKI SWIFT V (AZ) 1.2 (A2L412), Hatchback, K12M, Petrol, 1197 cc, 62/84 Hp
- SUZUKI SWIFT V (AZ) 1.2 Hybrid (Mild Hybrid) (A2L412), Hatchback, K12D, Petrol/Electric, 1197 cc, 61/83 Hp
- SUZUKI SWIFT V (AZ) 1.2 Hybrid (Mild Hybrid) AllGrip (A2L412), Hatchback, K12D, Petrol/Electric, 1197 cc, 61/83 Hp
- SUZUKI SWIFT V (AZ) 1.2 (A2L412, ZC83S), Hatchback, K12C, Petrol, 1242 cc, 66/90 Hp
- SUZUKI SWIFT V (AZ) 1.2 SHVS (A2L412), Hatchback, K12CS, Petrol/Electric, 1242 cc, 66/90 Hp
Car Name
OE number
SUZUKI
5561152R00
SUZUKI
5561152R00000
SUZUKI
5561152R01
SUZUKI
5561152R01000
SUZUKI
55611M68P00
