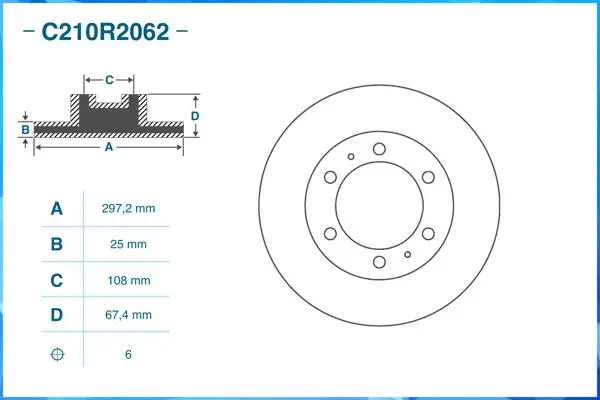

Description
-
Brake Disc Type:
Vented
-
Number of Holes:
6
-
Fitting Position:
Front Axle
-
Centering Diameter [mm]:
108
-
Brake Disc Thickness [mm]:
25
-
Height [mm]:
67,4
-
Outer Diameter [mm]:
297,2
Analogs parts
Product
Name
t.availability
Price
TOYOTA
-
FORTUNER (_N5_, _N6_)
- TOYOTA FORTUNER (_N5_, _N6_) 3.0 D 4WD (KUN51), SUV, 1KD-FTV, Diesel, 2982 cc, 125/170 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 3.0 D 4WD (KUN51_), SUV, 1KD-FTV, Diesel, 2982 cc, 126/171 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 3.0 D 4WD (KUN51), SUV, 1KD-FTV, Diesel, 2982 cc, 120/163 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 2.5 D-4D 4WD (KUN50), SUV, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 2.5 D-4D 4WD (RZN215, KUN50), SUV, 2KD-FTV, Diesel, 2494 cc, 106/144 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 2.7 (TGN61_), SUV, 2TR-FE, Petrol, 2694 cc, 118/160 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 2.7 4WD (TGN51_), SUV, 2TR-FE, Petrol, 2694 cc, 118/160 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 2.5 D-4D (KUN60, RZN205), SUV, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA FORTUNER (_N5_, _N6_) 2.5 D-4D (KUN60), SUV, 2KD-FTV, Diesel, 2494 cc, 106/144 Hp
-
HILUX VII Pickup (_N1_, _N2_, _N3_)
- TOYOTA HILUX VII Пикап (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26), Pickup, 1KD-FTV, Diesel, 2982 cc, 126/171 Hp
- TOYOTA HILUX VII Пикап (_N1_, _N2_, _N3_) 2.5 D 4WD (KUN25), Pickup, 2KD-FTV, Diesel, 2494 cc, 75/102 Hp
- TOYOTA HILUX VII Пикап (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25_), Pickup, 2KD-FTV, Diesel, 2494 cc, 88/120 Hp
- TOYOTA HILUX VII Пикап (_N1_, _N2_, _N3_) 2.5 D-4D (KUN15_), Pickup, 2KD-FTV, Diesel, 2494 cc, 88/120 Hp
- TOYOTA HILUX VII Пикап (_N1_, _N2_, _N3_) 3.0 D (KUN16), Pickup, 1KD-FTV, Diesel, 2982 cc, 126/171 Hp
- TOYOTA HILUX VII Пикап (_N1_, _N2_, _N3_) 2.5 D-4D 4WD (KUN25), Pickup, 2KD-FTV, Diesel, 2494 cc, 106/144 Hp
Car Name
OE number
TOYOTA
435120K060
TOYOTA
435120K070
TOYOTA
435120K071
